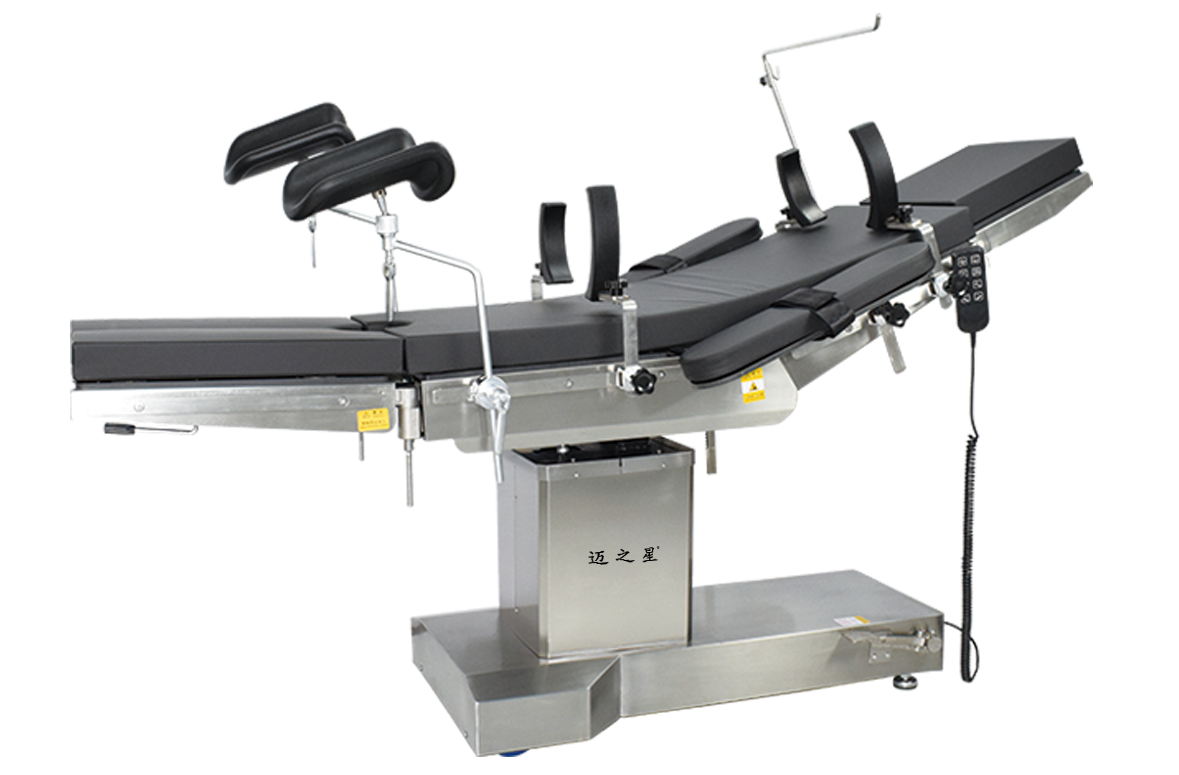

M800 (T-shaped Base) Electric Operating Table
Core Features
● Optional memory foam mattress
It consists of an imported electric motor system, a control system, a high-strength composite tabletop, an all-304 stainless steel frame and base, and other components. The overall structure is made of stainless steel, and the base adopts a T-shaped design to increase the comfort of the surgeon's feet. The base surface is made of 304 material, making it more suitable for the special working environment of hospitals. The tabletop can move longitudinally by 400 mm, allowing X-ray imaging of the tabletop without blind spots. The mattress is made of molded memory foam.
Technical parameters
Tabletop length and width: 2010 mm × 500 mm
Tabletop minimum and maximum height: 650 mm × 950 mm
Maximum forward and backward tilt angles of the tabletop: forward tilt ≥25°, backward tilt ≥20°
Maximum left and right tilt angles of the tabletop: left tilt ≥20°, right tilt ≥20°
Leg board adjustment range: downward fold ≥90°, detachable, outward abduction 180°
Backboard adjustment range: upward fold ≥75°, downward fold ≥10°
Headboard adjustment range: upward fold ≥45°, downward fold ≥90°, detachable
Longitudinal shift ≥400 mm
