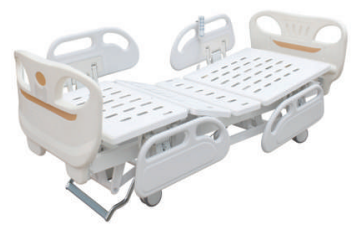

F5 Five-Function Electric Bed

1. Bed frame: welded from high-quality profiled steel, with an electrostatic powder-coated surface, sturdy, durable, and aesthetically pleasing.

2. Bed board: stamped and formed from high-quality cold-rolled steel plate, with an electrostatic powder-coated surface, corrosion-resistant and easy to clean.

3. Headboard and footboard: made of high-quality ABS engineering plastic in one-piece molding, with an attractive appearance and soft colors. Lock-type installation allows easy removal.

4. Casters: Taiwan Shi Ke Rui central-lock casters, noiseless, easy to move, four-wheel synchronous braking system, stable locking.

5. Side rails: four ABS liftable side rails, meeting the needs of different nursing staff, can be hidden under the bed board when not in use.

6. Motor: equipped with Taiwan LINKAN motor.

Technical parameters: back section lifting 0–80±5°, leg section lifting 0–40±5°, left lateral tilt 0–35±5°, overall height adjustment 100 mm, forward/backward tilt 0–15±5°.

Optional configurations: mattress, IV pole, headboard color, mobile dining table.
