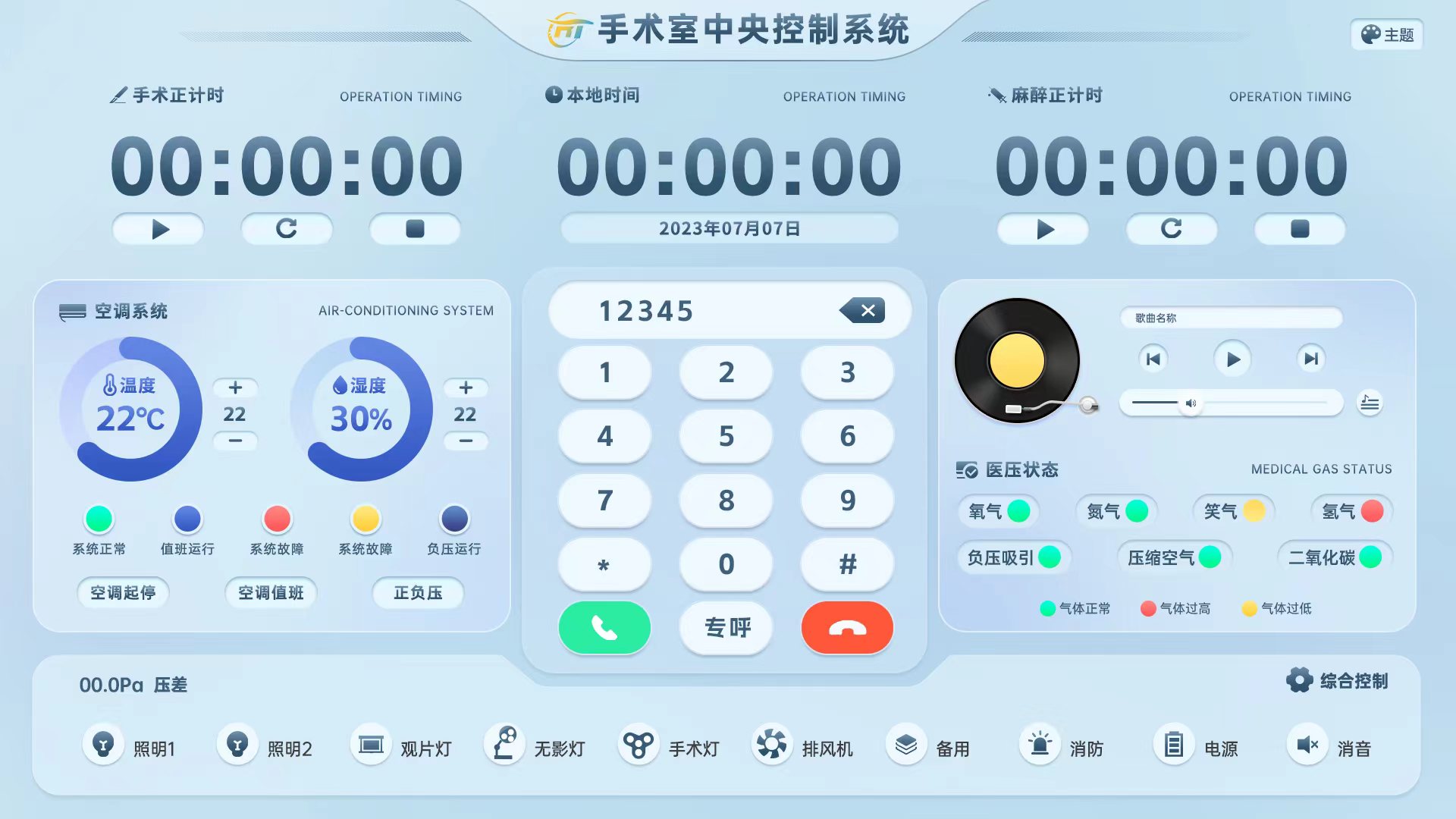

32-inch Operating Room LCD Information Panel

Integrates environmental monitoring, equipment control, surgical timing, and information display in one unit, achieving visualization of operating room status and centralized management of operations.

1. Model: QBMB-1-32

2. Overall dimensions: 830 mm (W) × 510 mm (H)

3. Capacitive touch LCD display

4. Modules: surgical timer, anesthesia timer, Beijing time, air conditioning control, telephone module, local music, background music, medical gas alarm module, and environmental control module (lighting, film viewer, shadowless lamp, in-surgery light, exhaust fan, backup, disinfection switch, UPS/IT alarm, fire alarm, differential pressure display)

5. Users need to provide their own RS485 differential pressure gauge; communication address: 7, baud rate: 9600, 8N1

6. Includes: display screen and control module
